Category 01

Bolts &
Threaded
Fasteners

Ten product types from standard hex configurations to precision socket and specialty anchoring — each manufactured to exacting torque and tensile specifications. Grades 8.8, 10.9 and 12.9 in ready stock from our Bengaluru warehouse.

Grade Range
4.6 · 8.8 · 10.9 · 12.9
Size Range
M4 — M48
Standards
IS · DIN · ISO
Products
10 Types

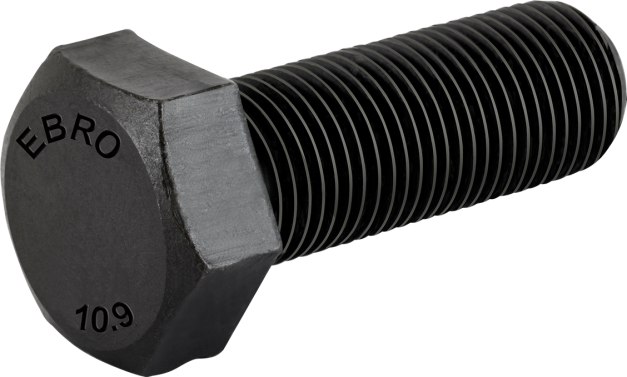

BLT-001

Hex Bolts

Size Range M4 to M16 · 8mm to 150mm Length
Grade / Property Class MS 4.6 · 8.8 · 10.9
Standard IS 1364 · DIN 931 (partial) · DIN 933 (full) · ISO 4014 / 4017
Thread Metric
Finish Plain · Zinc Black · Black Oxide · Zn/Blue
Material Medium Carbon Steel · Alloy Steel · SS 304 / 316 (on request)
MS 4.6 8.8 10.9
Hex Bolt — DIN 931 / DIN 933 technical drawing Hex Bolt — Side View DIN 931 / DIN 933
View Hex Bolt Page
BLT-002

Socket Head
Cap Screws

Size Range M3 × 6mm to M24 × 120mm
Grade 8.8 Grade · 10.9 Grade · 12.9 Grade
Standard DIN 912 · ISO 4762 · IS 2269 · BSW
Thread Metric
Material SS 304 · SS 316 · SS 316L (Rare — on order only)
8.8 10.9 12.9
Socket Head Cap Screw — DIN 912 / ISO 4762 Socket Head Cap — Metric DIN 912 · ISO 4762 · IS 2269
View Socket Cap Screw Page

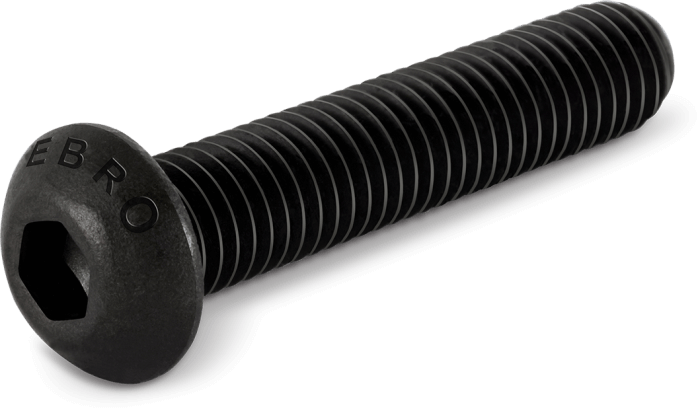

BLT-003

Socket Button
Head Screws

Size Range M3 × 6mm to M12 × 50mm
Grade 10.9 Grade · 12.9 Grade
Standard ISO 7380-1
Thread Metric
Finish Black Oxide · Zinc (on request)
Material SS 304 · SS 316 (on order only)
10.9 12.9
Socket Button Head Cap Screw — ISO 7380-1 Socket Button Head — Metric ISO 7380-1
View Socket Button Head Page

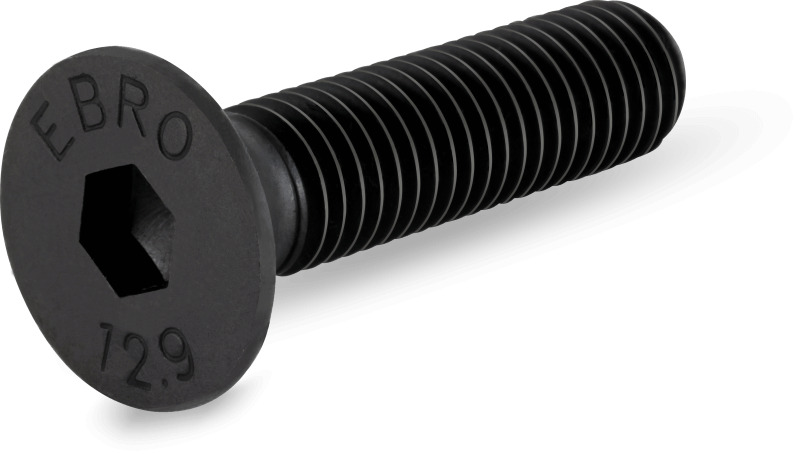

BLT-004

Socket
Countersunk
Screws

Size Range M3 × 6mm to M16 × 130mm
Grade 10.9 Grade · 12.9 Grade
Standard DIN 7991 · ISO 10642 · IS 6761
Head Angle 90° (metric standard)
Finish Black Oxide · Zinc (on request)
Material SS 304 · SS 316
10.9 12.9
Socket Countersunk Head Cap Screw — DIN 7991 / ISO 10642 Socket CSK — 90° Flush Head DIN 7991 · ISO 10642 · IS 6761
View Socket Countersunk Page
BLT-005

Grub Screws
(Set Screws)

Fully-threaded, headless screws that sit entirely within the mating thread, making zero protrusion possible. Available in four point types: cup point (standard — bites into shaft for maximum grip), flat point (no shaft marking), cone point (for permanent/semi-permanent setting) and dog point (precision locating with a cylindrical ground tip). The high-strength 12.9 grade resists shear in high-torque shaft applications.

Common Applications
Shaft Collars Pulleys & Sprockets Gear Positioning Motor Shafts Coupling Locks Valve Stems
Size Range M3 × 4mm to M16 × 40mm
Grade 8.8 · 12.9 (Alloy Steel)
Standard DIN 913 (flat) · DIN 914 (cone) · DIN 916 (cup)
Points Available Cup · Flat · Cone · Dog
Finish Plain · Black Oxide
8.8 12.9
BLT-006

Hex Flange
Bolts

A hex bolt with an integral circular flange (washer face) machined or forged as part of the head. The flange distributes the bearing load over a larger surface area than a standard hex bolt, eliminating the need for a separate washer in most applications. The serrated underside variant provides additional anti-vibration locking. Popular in high-volume automotive assembly lines for this reason — fewer components per joint.

Common Applications
Automotive Engine Suspension Systems Exhaust Manifolds Sheet Metal Fabrication Agricultural Equipment PEB Structures
Size Range M5 × 12mm to M20 × 80mm
Grade 8.8 · 10.9
Standard DIN 6921 · ISO 1665
Flange Type Plain · Serrated (anti-vibration)
Finish Plain · BZP · Black Phosphate
8.8 10.9
BLT-007

Threaded Rods
& Studs

Fully-threaded cylindrical rods with no head. Available as all-thread (continuous thread along entire length) and double-end stud (thread on both ends, plain centre for precise length control). Used as tension anchors, pipe hangers, suspended ceiling rods, and equipment base mounting studs. Custom cut lengths available. Bi-metal studs (carbon steel body, SS end threads) available for corrosive environments.

Common Applications
Suspended Fixtures Machinery Feet Tension Anchoring Pipe Hangers Structural Tension Rods Construction Formwork
Size Range M6 to M36 · Length: 1m standard / custom cut
Grade 4.6 · 8.8 · 10.9
Standard DIN 975 (all-thread) · DIN 976 (stud bolt)
Thread Metric Coarse (standard) · Fine pitch on request
Finish Plain · BZP · HDG · Stainless
4.6 8.8 10.9
Additional Types

More bolt types
in our range.

BLT-008
Foundation Bolts

L-type, J-type and anchor configurations. Heavy civil and equipment base-plate fixing in concrete. Grade 4.6 and 8.8.

BLT-009
Eye Bolts & Ring Bolts

DIN 580 metric. For lifting, rigging and load-bearing suspension. Stamped and forged options. Grade 4.6 and 8.8.

BLT-010
Shoulder Bolts

Precision-ground shank acts as pivot or guide. Die and mould tools, jigs and press tooling. Grade 12.9.

Not finding what you need? Call us on +91 9916884089 — we source on request.
